INDUSTRIES / Packaging / Dispenser and PCD Assembly

WHAT WE DID

Product: Pressure Control Device PCD

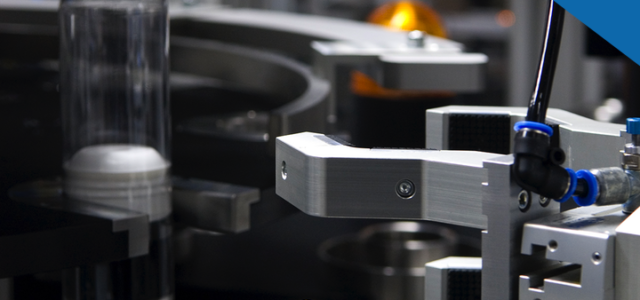

Function: fully automated assembly and packaging of a new design, pressure control device. The required parts (O-ring (10x1), piston, O-ring (2x1), stop) are merged together on the first indexing table. Rejected parts are sorted out automatically. A pick and place unit positions the part assembly on a second indexing table. Here, a spiral conveyor supplies the piston PCD and top. After the finishing inspection, the final product is packed automatically. The machine has an autonomy of more than half an hour as a result of our special developed autonomic supply unit.

Capacity: 100 products per minute; increased autonomy with peripheral buffering; Easy-to-use machine set-up with pull-down menu on operator panel.

Improvement: efficiency improvement, quality improvement and  higher through put.


For more information please contact our Sales
Call +31 45 543 9251 or e-mail [email protected]
